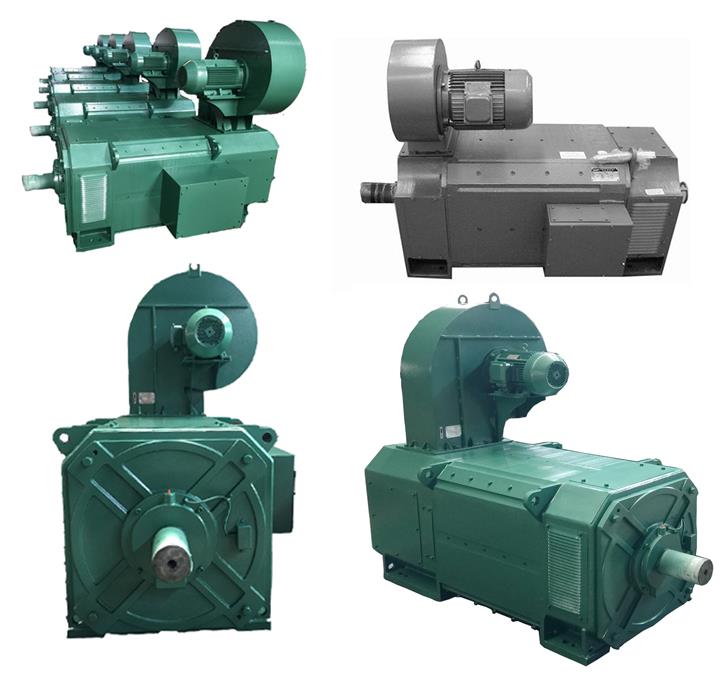

Z4 Series DC Motor
Product Introduction:
Z4 Series DC electric motor are widely used for prime mover in various fields, such as mill auxiliary in metallurgical industry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making, plastic extruding machine, etc.
This series of motor uses polygonal structure, the space utilization rate is high. The stator yoke is laminated, which is suitable for rectifier power supply, and can withstand the sharp change of pulsating current and current (load change). The pole is installed precisely, so commutation is good.
The insulation of the motor is F, and the reliable insulation structure and impregnation process are used to ensure the stability of insulation and good heat dissipation. It has the characteristics of small volume, good performance, light weight, high output power, high efficiency and high reliability, and it can compete with the international advanced level motors.
Brief introduction for products:
Basic Data | ||
No. | Brand Name | Wingo Star |
1 | Model Number | DC |
2 | Type | DC electric motor |
3 | Excited Mode | Seperated excitation |
4 | Place of Origin | Hebei, China (mainland) |
5 | Insulation Class | Class F |
6 | Frequency | 50HZ,60HZ |
7 | Efficiency | IE2 |
8 | Output Power | 4KW-6000KW or on request |
9 | color | on your request |
10 | Pole | 2P, 4P, 6P |
11 | Wire | 100% copper |
12 | Protection Class | IP21, IP23, IP54 etc. |
13 | Cooling Method | IC411 |
14 | Duty: | S1 (continuous) |
15 | Certification | ISO, SABS, CE |
16 | Protect Feature | Totally Enclosed |
17 | Rate Voltage | 440V 660V or on request |
18 | Ambient temperature | -20℃≤0≤40℃ |
19 | Altitude: | Not exceed 1000m |
20 | Mounting Type | B3 etc |
21 | Standard | Confirm to IEC international standard |
22 | Installation | we will send detailed instructions together with the Motors |
23 | Packaging Details | Packed with export requirement protect the motors and convenient for transport. |
24 | Delivery Details | 25-30 Days |
